Product Description

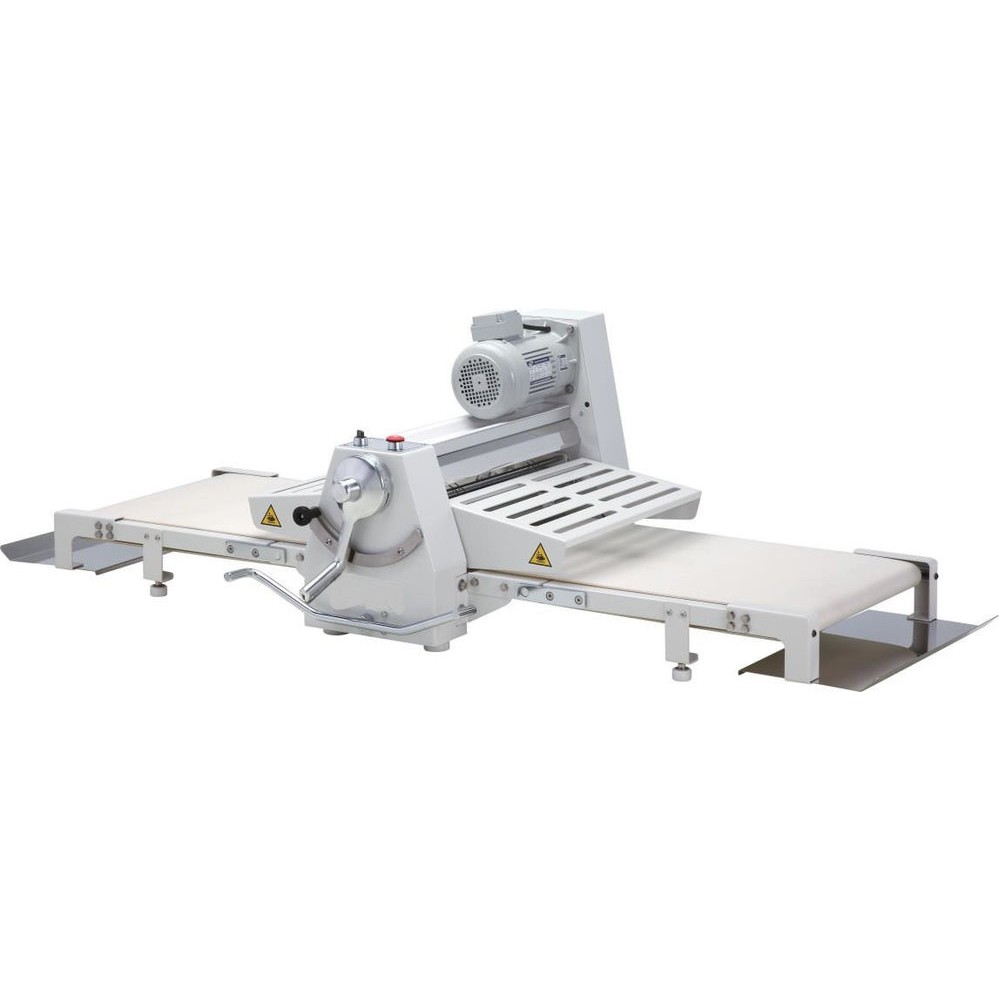

Axis Dough Sheeter, bench model, reversible, aluminum alloy head housing, push button operation, roller speed approximately 540mm per second, safety guard on both sides of roller, 1/2 HP 110v/60/1-ph
Features:
- Heavy duty aluminum alloy head housing
- Protective safety guards on both side of rollers, preventing hands to be caught by rollers
- Easy control – forward and reverse by a single push button
- Thickness – adjustable between 3-50mm
- Roller speed is approximate 540mm per second
- Synchronized 2-speed in feed prevents tearing of dough.
- Automatic overload protective prevent motor from damage.
- Both side conveyor tables are easily folded up in seconds to save space.
CONSTRUCTION: Heavy duty steel base, specially treated precision sheeting rollers, strong steel
Conveyor table and catch pans
MOTOR: Powerful, ball bearing, ventilated with enclosure
SWITCH: Limit switch, magnetic type with overload protection mounted.
Specifications:
- Belt Size (Inches): 16.9 x 66.9
- Roller Size (Inches): 3.4 x 17.7
- Motor: 1/2 H.P.
- Dimensions (L x W x H): 70.8 x 31.8 x 23.6
- Ship Weight (Lbs): 340
Electrical
Wattage
Amperage
Frequency
Plug
Voltage
Warranties
Warranty
Dimensions
Length
71 in
Width
32 in
Height
24 in
Weight
340 lb
Ship Freight Only
Yes
Specification Sheet
