• Brand: Bunn
  • Model: 37000.0020
$5,538.00
$3,096.72

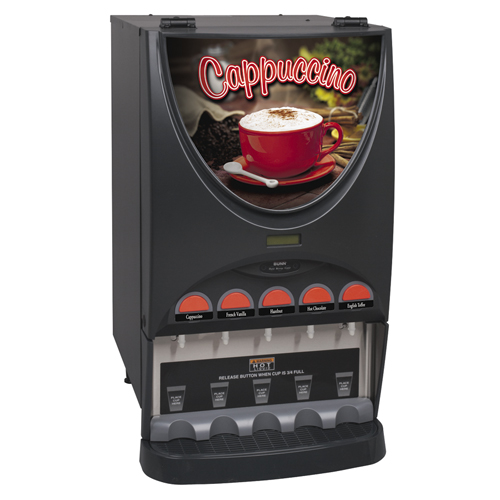

Bunn iMIX-5 BLK Powdered Beverage Dispenser w/ 5 Hoppers and Top Hinge Door 120V

This Bunn iMIX-5 BLK powdered cappuccino dispenser with 5 hoppers features a large, lighted display that draws customers' attention to your hot, fresh cappuccino! Its top hinged lift door offers additional space-saving efficiency so that you don't require as much countertop space around the unit. This dispenser features five 8 lb. hoppers that let you serve a variety of different flavors in your convenience store, coffee shop, or cafeteria style restaurant.

This hot beverage dispenser's high speed, heavy-duty whipper system ensures full flavor yield and complete product mixing, meaning no more clumps in your customers' cup! An alphanumeric digital display allows for simple operation and also communicates advertising messages, machine status, and technical support information.

The Bunn iMIX-5 BLK powdered cappuccino dispenser with 5 hoppers is ETL and NSF Listed and requires a 120V electrical connection. Please consult the Specification Sheet for additional electrical information and installation requirements.

Product Features:

  • Capacity: iMIX-4: Four, 8-pound (3.6 kg) hoppers iMIX-5: Five, 8-pound (3.6 kg) hoppers
  • Large, lighted front graphics for merchandising.
  • 7-gallon hot water tank to meet peak serving times.
  • Cup clearance at 7.25” (18.4 cm) to accommodate popular cup sizes (adjustable to 8.12” (20.6 cm)).
  • Key service components easily accessible through front and top.
  • High speed, heavy-duty whipper for complete product mixing.
  • Front of machine access to tank drain, dump valves, auger and whipper motors and control board for easy service.
  • Contemporary styling for striking visual statement.
  • New digital technology adds night mode to prevent pilferage.
  • Low product detection system alerts audibly and with message on display when hoppers are low.
  • Alphanumeric display communicates advertising messages, machine status and technical support contact information.
  • Spring-loaded, all metal auger drive system for easy hopper installation.
  • Front of machine set up and calibration.
  • Auger motors with RPM feedback monitoring assure consistent flavors and profits by controlling powder dosing.
  • Key lock on the door prevents tampering.
  • Iced Coffee display available.
  • Top hinged, lift door models available.
  • Preventive maintenance kit: 32906.0001.

#table-specs tbody { margin: 0; padding: 0; border: 0; outline: 0; font-size: 100%; vertical-align: middle; background: transparent; } #table-specs thead { text-align: left; } #table-specs thead th { background: #dcdcdc; border: 0px; color: #000; font-size: 1.5em; font-weight: bold; padding: 4px 10px; } #table-specs td { padding: 2px 5px; } #table-specs tfoot td { background: #dcdcdc; border: 0px; color: #000; padding: 2px 5px; }

Dimensions and Specifications
*Power cord (NEMA 5-15P) 15 Amp-120V machine only.
Volts Amps Watts Capacity Cubic Measure Dimensions Shipping Weight Cord Attached
120V 15A 1800W 4.5 gal/hr 16.37 ft³ 32.8"H x 19.3"W x 24"D 135 lbs. Yes*

Burst Capacity: 68 - 12 oz. servings in 37 minutes. (to -10°F (-23.3°C) peak serving temperature)
Electrical: 120V model requires 2-wires plus ground service rated 120V, single phase, 60 Hz.
Plumbing: 20-100 psi (138-690 kPa) from a 1/4” or larger supply line. A shut-off valve should be installed in the line before the unit. Install a regulator in line when pressure is greater than 90 psi to reduce it to 50 psi. Supplied with 1/4” male flare fitting.

Weight
135 lb
