• Brand: Bunn
  • Model: 37300.0023
$6,580.00
$3,659.60

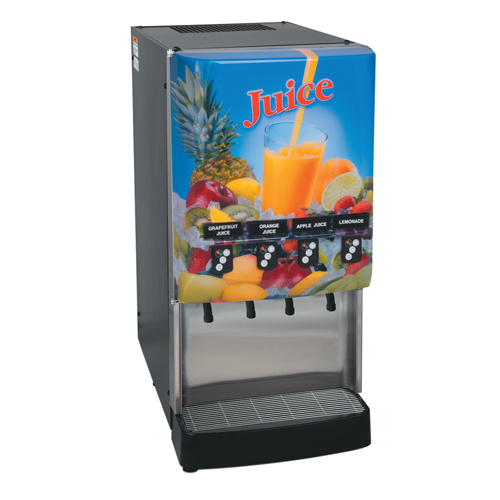

The Bunn JDF-4S PC LD 4 flavor cold beverage juice dispenser with portion control and a lit door from Bunn's renowned Silver Series is built to bring quick, efficient, and long-lasting service to your buffet line, breakfast bar, or cafeteria style restaurant! This juice dispenser features three preset portion control sizes that can be easily adjust for each of the four flavors. It includes four 1 gallon containers that hold concentrate and can be set to pump and mix concentrated beverages with up to an 11:1 ratio of water-to-concentrate.

This versatile dispenser features Bunn's patented High Intensity mixing technology to ensure reliable drink consistency, and boasts " of cup clearance to accommodate almost any juice container. An attractive, brightly colored juice display lights up on the unit's door to pique your customers' interest, while the high quality of your crisp, refreshing beverages keeps them coming back for more!

The Bunn JDF-4S PC LD 4 flavor cold beverage juice dispenser with portion control and a lit door is ETL and NSF Listed and requires a 120V electrical connection. Please consult the Specification Sheet for additional electrical information and installation requirements.

Product Features

  • Three-size portion-control dispense.
  • LED lighted door graphics bring high visibility to front-of-house applications.
  • One dispenser delivers both frozen and ambient products increasing profits by lowering costs.
  • Drink consistency assured with the BUNN High Intensity mixing technology.
  • Pumps and mixes 2:1 to 11:1 concentrated beverages, including 4:1 high viscosity and 5:1 juices accurately and consistently.
  • Quick dispense with 1.0 to 1.5 ounces (29.6 to 44.4 ml) per second flow rate.
  • 7" (17.8 cm) cup clearance accommodates most juice containers.
  • 18 lb. (8.2 kg) ice bank provides superior cold drink capacity.
  • Advanced concentrate pump designed for easy setup, accuracy and durability.
  • Service-friendly design including two modular dispense decks makes service fast and simple.
  • Door lock standard.
  • Preventive maintenance kit: 39690.0000.

#table-specs tbody { margin: 0; padding: 0; border: 0; outline: 0; font-size: 100%; vertical-align: middle; background: transparent; } #table-specs thead { text-align: left; } #table-specs thead th { background: #dcdcdc; border: 0px; color: #000; font-size: 1.5em; font-weight: bold; padding: 4px 10px; } #table-specs td { padding: 2px 5px; } #table-specs tfoot td { background: #dcdcdc; border: 0px; color: #000; padding: 2px 5px; }

Dimensions and Specifications
*75°F (24°C) incoming water for 180 drinks without exceeding 41°F (5°C) finished drink temperature.
Power cord (NEMA 5-15P) 15 Amp-120V machine only.
Volts Amps Capacity Cubic Measure Dimensions Shipping Weight Cord Attached
120V 4.5A 4 (5 oz.) drinks/min* 10.3 ft³ 33.1"H x 10"W x 25.5"D 103 lbs. Yes

Electrical: 120V model requires 2-wires plus ground service rated 120V, single phase, 60 Hz.
Plumbing: 20-100 psi (138 - 690 kPa). Machine supplied with 3⁄8" (0.95 cm) male fitting.
Refrigeration: R-134a refrigerant, 9 oz. (.28 kg), 8 lb. (3.6 kg) ice bank system.

Weight
149 lb
