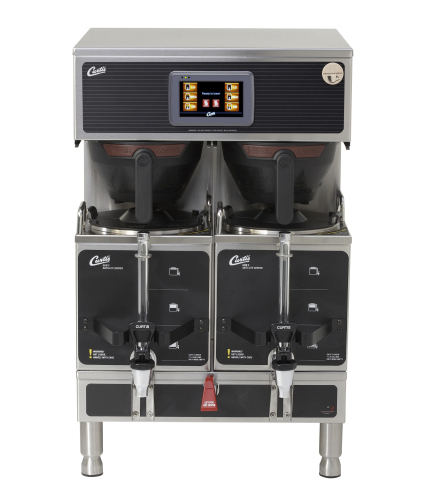

Introducing Curtis G4. An acceleration of design and function that perfects coffee brewing, cup after delicious cup. An instinctive touch screen, icon-driven interface provides users with training, programming and seamless operation. It’s brewing science at its best… only from Curtis.
Features:
- Generation Four (G4) Digital Control – Large, 4.3" touch screen. Icon-driven interface streamlines operation.
- On-Screen Instructions – Provides fast, intuitive training; reduces service calls.
- Built-in Self Diagnostic System – Includes real-time feedback of the brewing process and energy saving mode
- Advanced Scale Warning System – Continually monitors and advises tank probe condition
- LED notification of freshness timing.
- Gold Cup Series – Digital Control Module provides precise control over all aspects of brewing: time, temperature, volume plus specialty coffee needs from pre-infusion to pulse- brewing to water bypass.
- Pre-set, one-touch Global Recipes – Based on coffee type, grind and weight. Simplifies profile setting for gourmet results every time.
- Industry’s most effective mineral tolerant design Patented fast-wetting AFS Srayhead Non-metallic water level probe Non-immersed water temperature sensor
- Encapsulated Control Board – Protects against steam, water and impact.
- Field selectable for ⅓, 1 or 1.5 gal. batch brewing.
Electrical
Wattage
7600
Amperage
35
Voltage
220
Dimensions
Length
22.10 in
Width
18.10 in
Height
30.50 in
Weight
85 lb
Service Manual
Cleaning Manual
Product Brochure and Specifications
