Keating 10x11CMTS 036476 Counter Model Instant Recovery Fryer Electric 208-240/3P

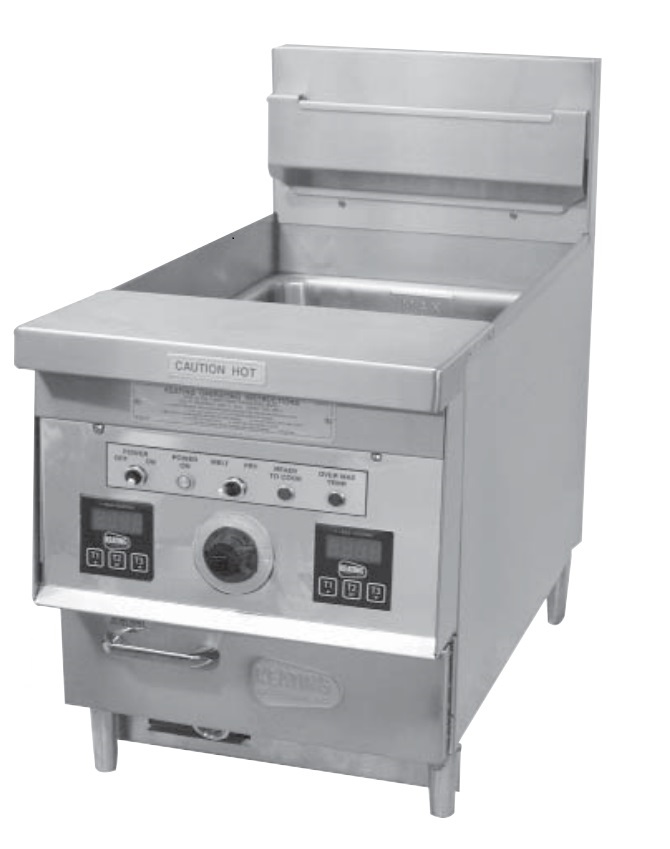

Keating 036476 Model 10x11 CMTS Counter Model Instant Recovery Fryer

Standard Features: 13.6 kW input for cooking up to 40 lbs. of frozen french fries per hour Instant Recovery®for high production Stainless Steel cabinet Polished Stainless Steel fryer vessel Extra large Cold Zone Saves valuable space without sacrificing production Saves on oil costs/cooks at lower temperatures Indicating lights and timers Melt cycle

Options: Instant-On™ Computer Thermostat Seal Portable Filter Security Package Cover

The 10×11 BB Electric Counter Model Fryer is ideal for multi-product use. The 10×11 BB allows you to cook up to 40 lbs. of frozen french fries per hour with an input of 13.6 kW rated at 240 volts.

Keating saves oil costs in three ways:

• BETTER FRY POT DESIGN
• LARGER COLD ZONE
• INSTANT RECOVERY®

1. You shouldn't have to wait on the fryer. A properly designed fry pot ensures that the fryer has recovered its temperature before the end of the cooking cycle. Keating “INSTANT RECOVERY”®means continuous performance.
2. The Keating frying vessel is 27% Cold Zone, the food particles collected in the cold zone are unheated and therefore do not carbonize and contribute to premature shortening breakdown.
3. Keating's “INSTANT RECOVERY”®feature means frying at lower temperatures (325° – 335°F) extending oil life while enhancing product quality.

Oil Capacity - 30 lbs

Easy to clean Keating uses only 304 stainless steel in its frying vessel design and polishes each vessel. The smoother the surface, the less carbon build-up occurs, making cleaning easier. A full one inch front drain allows easy draining of oil. Safety controls ensure safe and accurate cooking. The patented and precise thermostat controls cooking temperatures to ± 3°F. Hi-Limit control protects against the oil and fryer overheating. Each fryer goes through a rigorous 100% test before shipping with every component carefully checked. The actual temperature test chart is included with each fryer.

Special Order Options Keating gives you the widest range of options to ensure your fryer is exactly suited to your needs.

SPECIFICATIONS Fryer Vessel - 18 gauge stainless steel, with a shortening capacity of 30 pounds. Equipped with three stainless steel electric elements, spaced above the bottom of the vessel so that the bottom is unheated and the food particles collecting in the bottom zone are unheated and therefore do not carbonize. The vessel is polished to inhibit carbon buildup and facilitate easy clean-up. The bottom of the vessel slopes toward the front, and is equipped with a 1" Tefl on core 1/4 turn drain valve, so the shortening can be drained into a receiving vessel placed in front of the fryer.

Splashdeck - 16 gauge, 304 stainless steel. It slopes toward the shortening containing vessel.

Splashback - 18 gauge, 304 stainless steel. It completely covers the side of the flue.

Cabinet - 18 gauge stainless steel. Rigid in construction, with four 4" adjustable legs. The cabinet door is made of 22 gauge 304 stainless steel. The door covers the front of the cabinet from the bottom of the fryer to the fryer panel, and the full width of the cabinet. Above the panel is a canopy. No additional space is required for the door to open a full 90 degrees.

Electric Elements - Three electric elements, made of polished stainless steel.

Thermostat - Close range, hydraulic type, is accurate to ±3°F from 300° to 350°F with stainless steel bulb. Application of this thermostat is patented by Keating.

Hi-Limit Control - Manually resettable type with stainless steel bulb.

Melt Cycle - Standard on “TS” fryers, allowing the safe melting of solid shortening. Fryer is to be left in the Melt Cycle mode until oil completely covers elements.

Indicating Lights & Switches - Power on switch, melt idle fry switch, ready to cook light, over max temp light.

Standard Accessories - Includes two timers (programmable for three products each), one pair 4 mesh baskets, grid screen over elements, drain clean out rod, 1" x 11-1/2" drain extension and sample of Keating Klenzer.

Electric Specifications - 3-wire terminal block, with ground provided for field wiring. (See local codes for supply line requirements.)

Special Order Options may include cover, thermostat seal, portable filter, Instant-On™, computer, and security package.

Electrical Requirements:
MODEL : 10x11 TS E CM 208-240/3
Amps 208V:
KW: 10.2
Amps 28-28-28
Amps 220V:
KW: 11.4
Amps 30-30-30
Amps 240V:
KW: 13.6
Amps 33-33-33
Amps 380V:
KW: 11.4
Amps 17-17-17
Amps 480V:
KW: 13.6
Amps 16-16-16

DIMENSIONS

• Working Height 19 3/8"
• Overall Height 27 1/4"
• Depth 25 1/4"
• Width 12 3/8"
• Weight 120 lbs.
