$3,872.00
$2,323.20

FEATURES

  • Extruded aluminum sides extend 9/16" and will support 18" x 26" and 18" x 13" pans (lip hung) on 1-1/2" centers
  • Blower fan and fan stop provide uniform heat distribution throughout cabinet

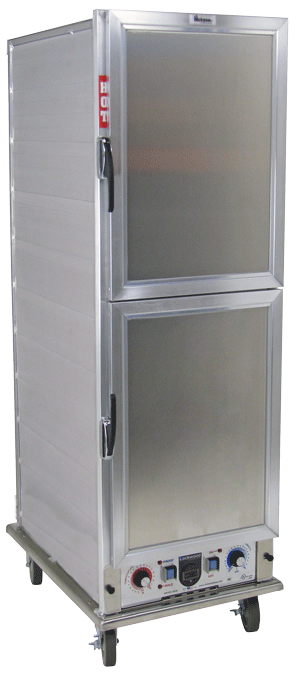

  • Doors (single or Dutch) available in clear polycarbonate or solid aluminum with magnetic latch handle
  • Standard with right hand hinging; left hand hinging available upon request
  • Removable heat unit for easy maintenance and repair includes:
  • Exterior mounted controls
  • Digital thermometer in face of heat unit
  • Temperature adjustable to approximately 160ºF
  • Separate temperature and humidity controls
  • Electrical: 120 volt, 15 amp circuit, 1500 watts, 60 cycle, single phase. 8 foot cord with 3 prong plug
  • Casters: (4) 5” x 1-1/4" High Tech gray non marking swivel, 2 w/brakes
  • Options:
  • Perimeter or corner bumpers
  • Push handles
  • Hasp lock
  • Dimensions (H x W x D inches): 67-3/4 x 22-3/8 x 31-1/4
  • Pan Capacity: 34
  • Center Spacing (inch): 1-1/2
  • Weight (lbs.): 116

CABINET SPECIFICATIONS

  • Top & back panel: One piece 0.125" aluminum welded to extruded side panels and base
  • Side panels: Extruded .070" aluminum panels; welded together.

BASE SPECIFICATIONS

  • One piece .125” aluminum; formed construction
  • Casters: (4) 5” x 1-1/4" High Tech grey swivel (2 w/brakes); load capacity 250 lbs each (113.4 kg); temp. range -45 °/ 180° F

DOOR SPECIFICATIONS

  • Frame: 7/8” x 1-3/4” extruded aluminum screwed and welded together
  • Panel: .118” clear polycarbonate, fitted into door frame
  • Latch: Magnetic type latch handle screwed to door frame
  • Hinges: 4” stainless steel - opens 180°
  • Gasket: Perimeter; fitted into frame extrusion, flexible PVC rubber

PAN SUPPORT SPECIFICATIONS

  • Extruded .070” aluminum

HEAT UNIT SPECIFICATIONS

  • Removable bottom mount proof / hold unit
  • Body: Formed .063” aluminum
  • Thermostat (holding): Mechanical, up to 195°
  • Thermostat (humidity): Mechanical, up to 95%
  • Indicator lights: Power, Proof, Hold modes
  • Switches: (2) Rocker type with guards
  • Heat Elements: (1) 1000 W, (1) 500 W internal; (1) 1000 W immersible external for proofing
  • Blower Motor
  • Thermometer
  • Water Pan: 4.3 quart, 23 ga., 18/8 stainless steel

POWER REQUIERMENTS

  • 1500 Watts, 120 Volts, 60 Hz, Single Phase 15 Amp.
  • Dedicated 15 Amp. service
Dimensions
Length
31 in
Width
22 in
Height
67 in
Weight
116 lb
