$5,476.00
$3,285.60

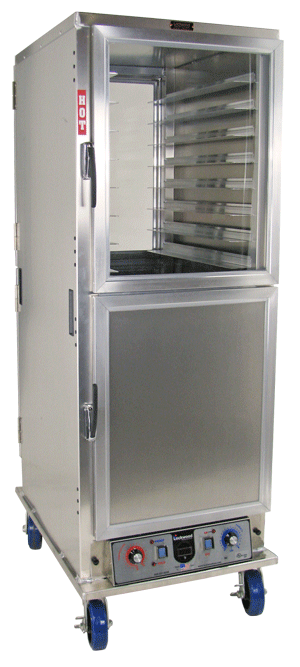

This unit has a Clear Dutch Glass Top Door and a Solid Dutch Bottom Door.

FEATURES

  • Furnished with 16 pair of 3-1⁄2” removable universal pan supports
  • Blower fan provides uniform heat distribution throughout cabinet
  • Will accommodate up to 16 pans on 3-1/4” center spacing
  • Standard with 2 clear polycarbonate Dutch doors on top and 2 solid insulated aluminum Dutch doors on bottom (Any custom door configuration is available)
  • Integrated side handles
  • Standard with right hand hinging; left hand hinging available upon request
  • Removable heat unit for easy maintenance and repair includes:
  • Exterior mounted controls
  • Digital thermometer in face of heat unit
  • Temperature adjustable to approximately 180ºF
  • Separate temperature and humidity controls
  • Electrical: 120 volt, 15 amp circuit, 1500 watts, 60 cycle, single phase. 8 foot cord with 3 prong plug
  • Casters: (4) 6”x2” polyurethane swivel, 2 w/brakes
  • Options:
  • 1-1⁄2” or 5-1⁄2 ” pan supports
  • Perimeter or corner bumpers
  • Hasp lock
  • Dimensions (H x W x D inches): 75-3/8 x 26-7/8 x 36
  • Pan Capacity: Up to 16
  • Center Spacing (inch): 3-1/4
  • Weight (lbs.): 215

CABINET SPECIFICATIONS

  • Top: One piece .063” aluminum; riveted and welded to sides and back
  • Side panels: Formed .090” aluminum; welded to base and top
  • Back panel: .090” aluminum; welded and riveted to base and top

BASE SPECIFICATIONS

  • One piece .125” aluminum; formed construction
  • Casters: (4) 6” x 2” polyurethane swivel (2 w/brakes); load capacity 900 lbs each (408.23 kg); temp. range -45 °/ 180° F

DOOR SPECIFICATIONS

  • Frame: 7/8” x 1-3/4” extruded aluminum screwed and welded together
  • Panel: .118” clear polycarbonate, fitted into door frame
  • Latch: Magnetic type latch handle screwed to door frame
  • Hinges: 4” stainless steel - opens 180°
  • Gasket: Perimeter; fitted into frame extrusion, flexible PVC rubber

PAN SUPPORT SPECIFICATIONS

  • Extruded .085” aluminum; removable
  • Adjustable on 3-1/4” centers

HEAT UNIT SPECIFICATIONS

  • Removable bottom mount proof / hold unit
  • Body: Formed .063” aluminum
  • Thermostat (holding): Mechanical, up to 195°
  • Thermostat (humidity): Mechanical, up to 95%
  • Indicator lights: Power, Proof, Hold modes
  • Switches: (2) Rocker type with guards
  • Heat Elements: (1) 1000 W, (1) 500 W internal; (1) 1000 W immersible external for proofing
  • Blower Motor
  • Thermometer
  • Water Pan: 4.3 quart, 23 ga., 18/8 stainless steel

POWER REQUIERMENTS

  • 1500 Watts, 120 Volts, 60 Hz, Single Phase 15 Amp.
  • Dedicated 15 Amp. service
Dimensions
Length
36 in
Width
26 in
Height
75 in
Weight
215 lb
Ship Freight Only
Yes
