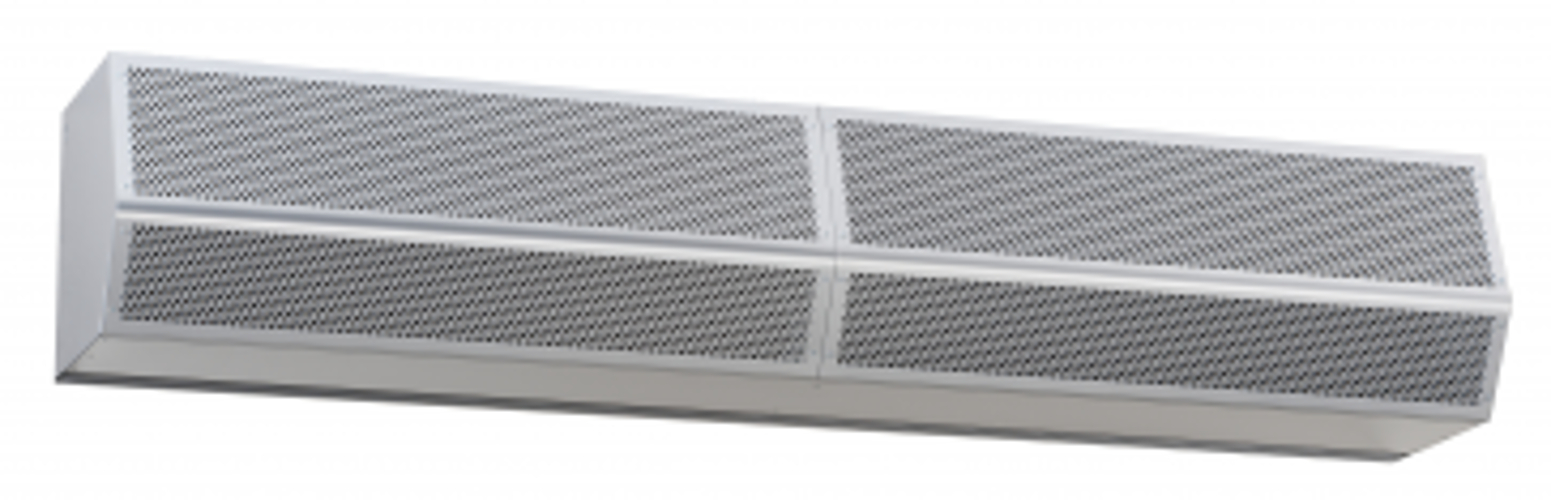

The HV (High Velocity) series features 1 horsepower motor(s) that is strong enough for many industrial applications. It is capable of separating environments and protecting openings with significant wind loads up to 12 ft. high.
Features:
- Durable aluminum construction with powder coated finish
- Easy to install
- Low maintenance and operational costs
- Contributes to LEED points
- Maintains consistent interior temperature
- Minimizes dirt, dust, and fumes
- Controls flying insects
- Allows for unobstructed views, enhancing safety
- Effective environmental control
- Reduced energy consumption
- Designed to meet the National Electric Code (NEC) and ETL listed (UL 507 and CSA 22.2).
Specifications:
- Door width: 36"
- Door height: 12'
- Full load amps: 5 A
- Sound pressure level: 70 dBA
- Average velocity: 2389 fpm
- Volume: 1792 cfm
- Net weight: 115 lbs
