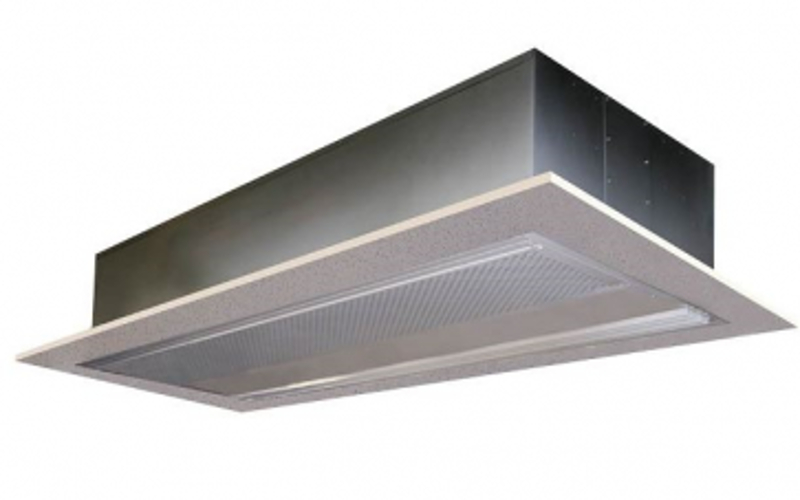

The Phantom Series is the choice for architects and designers who need all the performance and protection of a Mars Air Curtain, but need the unit to blend in with the building's internal or external aesthetics. Phantom units feature the same top-performing internal components as 1/2 HP Standard Units, but are enclosed in housing which can be concealed and recess-mounted into a ceiling. The units are quieter and less conspicuous, without sacrificing anything in their ability to do the job required.
Features:
- Recess mounted in ceiling for invisible coverage
- Durable aluminum construction with powder coated finish
- Easy to install
- Low maintenance and operational costs
- Contributes to LEED points
- Maintains consistent interior temperature
- Minimizes dirt, dust, and fumes
- Controls flying insects
- Allows for unobstructed views, enhancing safety
- Effective environmental control
- Reduced energy consumption
- Designed to meet the National Electric Code (NEC) and ETL listed (UL 507 and CSA 22.2).
Specifications:
- Door width: 42"
- Door height: 8'-10'
- Full load amps: 5.1 A
- Sound pressure level: 66 dBA
- Average velocity: 1806 fpm
- Volume: 1580 cfm
- Net weight: 60 lbs
