• Brand: Jet-Tech
  • Model: FX-44
 Free Shipping
$19,360.00
$14,331.24

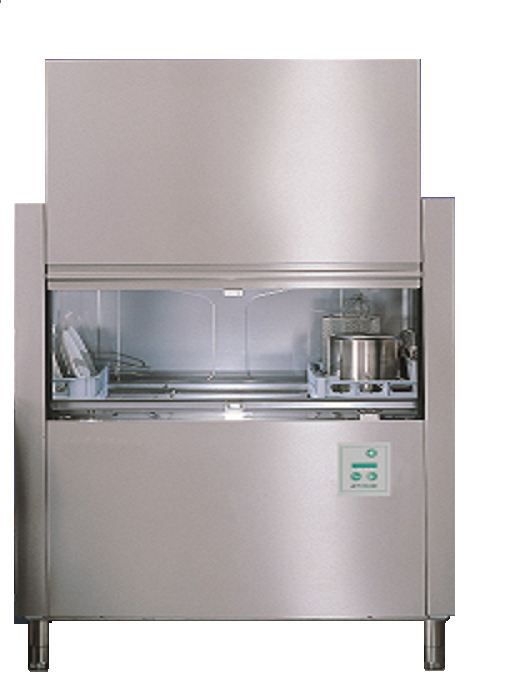

The Absolute Highest Innovation in Ware Washing

The operators of this equipment have at their disposal a most versatile and innovative instrument; capable of delivering immediate results to your operation. It is now possible to obtain increased performance, remarkable savings in operations costs, as well as a reduced environmental impact. The Jet-Tech FX 44 conveyor dishwasher performance stands on three main pillars:

  • Hydrowash
  • Total Clean Concept
  • Integrated Electronic Control System

These three pillars are the result of our care for the most useful innovation in your kitchen and that's the reason we can assist users in their everyday work and habits. Versatile and powerful, the FX 44 is capable of washing up to a maximum of 2,350 dishes an hour. Low consumption and power requirements, with a selectable double speed, it is a highly productive instrument. Make this the ideal solution to combat those tough everyday workloads.

Hydrowash

Hydrowash is Jet Tech's patented washing system that they have developed to obtain more with less effort. In the traditional rack conveyor most of the energy generated by washing pumps is washed in the collisions between the water jets. FX 44 with Hydrowash design effectively minimizes overlapping between the water blades; in this way the energy that the pump impresses on the water is directed to the wares to be washed.

Total Clean Concept

The FX 44 dishwashers were projected to grantee the maximum cleanliness, easiness and a total seal of hygiene. All the tanks are deep-drawn without welds to make the direct slide to the drain. The water is treated by large surface integrated filters that retain the biggest direct particles; conveying them in easily removable containers. Pumps are self-draining to avoid any foul odors. The washing chamber is without manifold or sharp edges. There are no places where direct can accumulate. The ordinary maintenance operations at the end of the shift are greatly reduced.

Powered Pre-Washing

The powered pre-washing module has a length of 32" and makes use of the extraordinary performance of the 36 jets and its patented Hydrowash Washing System. The tank is deep-drawn and can be easily cleaned, the surface filters are very effective in retaining dirt, while a second extractable filter is provided on the pump's suction duct. An effective thermostatic system keeps the water's temperature constant, activating, if required, an integrated heating element in the tank.

Control System

FX 44 rack convertor is equipped with an ultra modern electronic control panel. The operation is simple and intuitive, the LED displays permit you to visualize the washing and rinsing temperatures as required by HACCP standards. A special push button permits selection of the most suitable operation, continuous or single rack. The panel displays the self-diagnostic circuit messages that monitor the main electric components showing specific error messages at every malfunction.

Specifications:

  • Rack Dimensions: 20" x 20"
  • Cycle Speed: 150 racks per hour / 210 racks per hour
  • Washing temperature: 165F
  • Rinsing temperature: 190F
  • Wash tank capacity: 18.25 gal
  • Booster capacity: 4.5 gal
  • Maximum consumption: 89.81 gal per hour
  • Water inlet temperature: 122F
  • Fill pressure: 18-40 lbs
  • Fill hose connection: 3/4" male hose connection
  • Drain hose diameter: 1.5"
  • Motor HP: 2 HP
  • Voltage: 208V / 60Hz / 90A / 3 Phase
  • Booster Power: 3 x 8000 Watts
  • Tank: 9800 Watts
  • Rack conveyor motor: 220 Watts
  • Wash pump: 1500 Watts
  • Rinse pressure pump: 250 Watts
  • Total power load: 28000 Watts
  • Net Weight: 1012 lb
  • Ship Weight: 1210 lb
  • Noise Level: <70 dBA
Weight
999.99 lb
Ship Freight Only
Yes
Specifications
