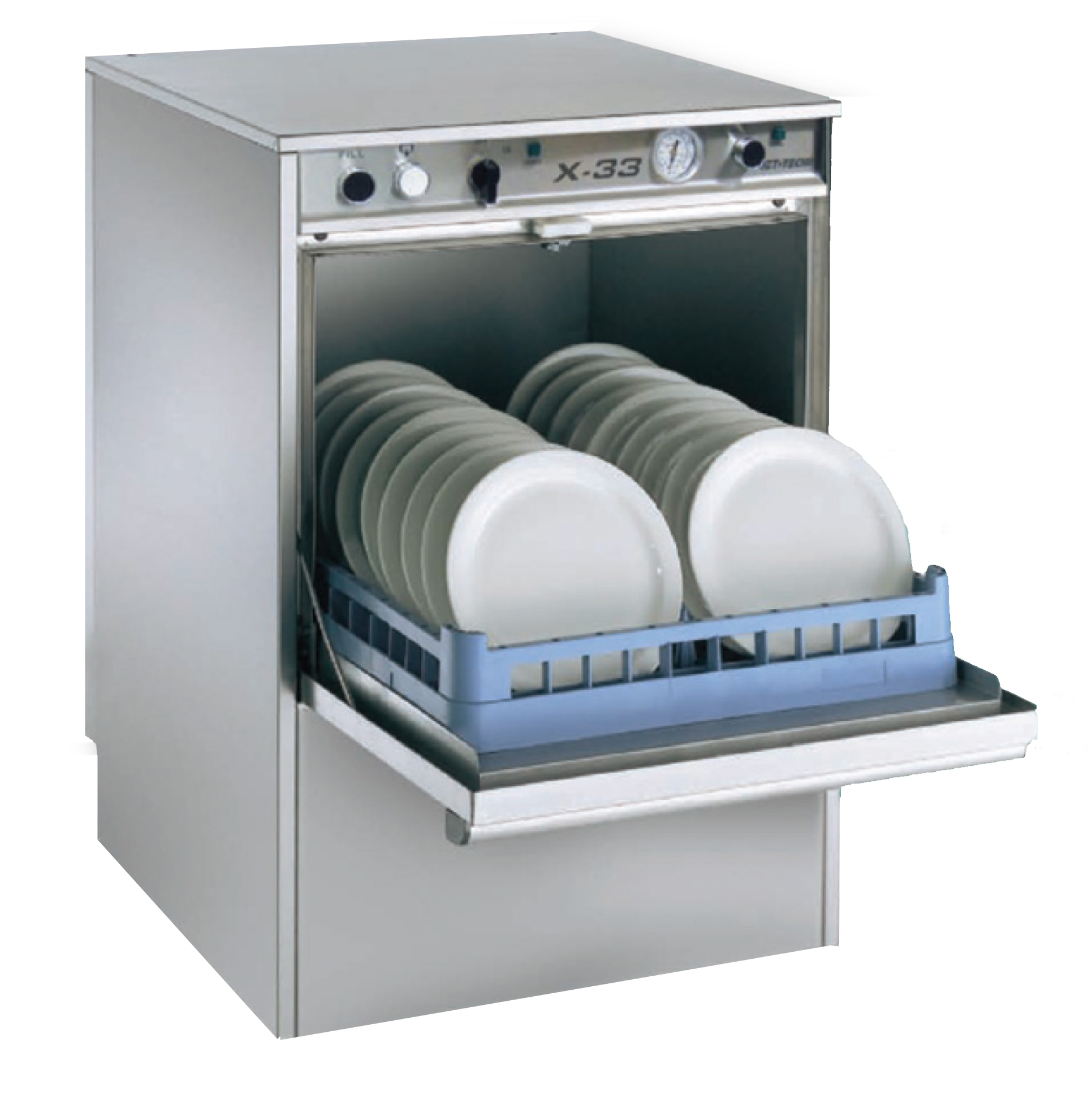

Jet Tech's X-33 Dishwasher cleans your dishes, glassware, silverware, and utensils. This model is excellenet for small restaurants, fast food operations, institutions, nursing homes, and more.
Features:
- Fully automatic washing and rinsing operation with integrated chemical injection system
- Wash tank heater to ensure and maintain proper temperature
- Sanitary labyrinth door eliminates any gasket
- Deep drawn one piece unified inner chamber
- Rinse-additive pump for sparkling results
- Detergent pump for consistent results
- Chemical sanitizing pump
- Just the push of one button ills the wash tank
- No need for any booster heater
- New and improved wash arm design
- Highest quality fabrication using the most advanced machinery will ensure long-life and increased durability
- Slide out control panel for ease of service and maintenance
- Automatic drain valve mechanism assists to drain water up to a height of 36"
- Stainless steel wash and rinse arms
- Inner wash tank stamped in AISI 316 - resists corrosion.
Construction:
- Stainless steel pump impeller provides greater durability
- Standard insulated top and side panels
- Stainless steel upper and lower wash/rinse arms are interchangeable and easily removed for cleaning
- Body, external housing and all chasis components in brushed stainless steel AISI 304
- .75 HP drop proof pump motor
- Door safety switch
- Adjustable peristaltic pumps for detergent, rinse, and sanitizer
- Door opening height of 15 inches
- Reliable mechanical type cam timer
- Detergent/Chemical connections
- Delime switch
- Cycle counter
- Standard equipment includes: one open combination rack and one peg dish rack 19.75" x 19.75"
Specifications:
- Racks per hour: 37
- Water consumption per cycle: 1
- Wash motor: .75 HP
- Wash time: 45 seconds
- Dwell time: 12 seconds
- Rinse time: 28 seconds
- Total cycle time: 85 seconds
- Shipping weight: 178 lbs
- Electrical: 115V/60Hz/13A/1 Phase
- Water supply: 1/2" hot water supply 140F
- Flow pressure: 25 psi
- Water inlet connection: 3/4 male hose connector
- Drain connection: 1"ID max height 36"
Features
Door Design
Door Opening
Racks Per Hour
Electrical
Amperage
Frequency
Voltage
Warranties
Warranty
Weight
166 lb
Ship Freight Only
Yes
